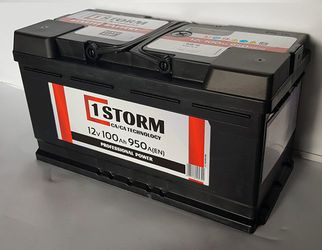

6ST-100 Battery 12V 100Ah with 830A Starting Current and 800-1200 Cycles for Sand-vik DD/DL Series Drilling Rigs

The 6ST-100 is a 12V 100Ah lead-acid starting battery (GOST standard 6СТ-100). It serves as the starting and auxiliary power supply for Sand-vik DD/DL series underground drilling rigs, and is a direct replacement for the original 12V 95Ah/145Ah AGM batteries.

• Model: 6ST-100
• Rated Voltage: 12V
• Rated Capacity: 100Ah (20-hour rate)
• Starting Current: 800-830A (EN standard)
• Dimensions (L × W × H): 353 × 175 × 190 mm
• Terminal Polarity: Reverse (- / +, positive terminal on right), compatible with European & mining equipment terminals
• Type: Maintenance-free Calcium-Calcium lead-acid / AGM deep cycle battery
• Operating Temperature: -20℃ ~ +55℃
• Weight: 22-24.5 kg

DD Series: DD212, DD311 (Original configuration: 2 pcs × 12V 95Ah AGM), DD320S, DD321 (Original configuration: 2 pcs × 12V 145Ah)

DL Series: DL421, DL422i, DL422iE

1. Polarity Check: Select batteries with reverse polarity (- / +) to match terminals of Sand-vik drilling rigs.
2. Mounting Space: Confirm the battery compartment fits the size 353×175×190 mm.
3. Parallel Connection: For dual-battery parallel setup, use batteries of the same model and batch.
4. Battery Type Selection:
   • General working conditions: Calcium-Calcium maintenance-free battery (low cost, minimal maintenance)
   • Frequent starting & deep cycle scenarios: AGM type (vibration-resistant, longer service life)

• Varta 6СТ100з SD: Reliable performance, 830A starting current, ideal for DL series
• Monbat 12HVR100C AGM: Carbon technology design, over 1200 cycles, excellent low-temperature performance
• SADA 6СТ-100Аз: Compliant with Asian standards, suitable for DD311 / DD321

The 6ST-100 (12V 100Ah) battery is a cost-effective alternative for starting and auxiliary power of Sand-vik DD/DL series drilling rigs. It features larger capacity and stronger starting current than the original 95Ah battery, with compatible dimensions and matched polarity, fully adaptable to harsh underground working environments.
