Diaphragm of Rock Drills 3201195384

Basic Information

• Part Number: 3201195384
• Description: Rock Drill Accumulator Diaphragm
• Brand: Epiroc (Atlas Copco)
• Material: FKM (Viton) fluoroelastomer – oil-resistant, high-temperature resistant, and anti-aging
• Application: Sealing component for nitrogen accumulators in hydraulic rock drills
• Weight: Approx. 0.15 kg
• Warranty: 6 months (OEM)

Compatible Models

• Rock Drills: COP1838, COP1238, COP1638, RD18U, HL1560T
• Drill Rigs: Boomer 282, Simba S7D, Minimatic, Rocket
• Other Applications: Accumulator maintenance for underground mining/tunneling jumbos and hydraulic drill rigs

Features

• High pressure resistance (up to 250 bar), impact-resistant, and fatigue-resistant
• Operating temperature range: -20℃ to +150℃
• OEM quality; interchangeable with alternative part numbers: 3115182201, 09260298

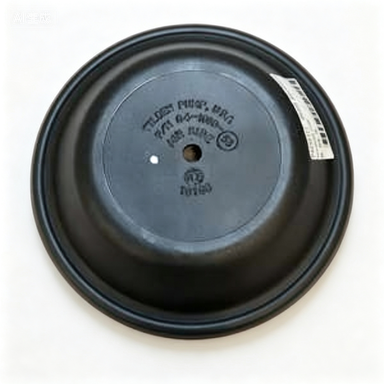

Product Image (Reference)

Installation Notes

1. Thoroughly clean the accumulator housing before installation, removing all oil, grease, and debris.
2. Install the diaphragm with its sealing lip facing the nitrogen side, ensuring the sealing surface is free of scratches.
3. Charge the nitrogen pressure according to the equipment specifications (typically 120–150 bar); avoid over-pressurization.
4. Regularly inspect for aging or cracking to prevent nitrogen leaks that could cause weak impact performance.
