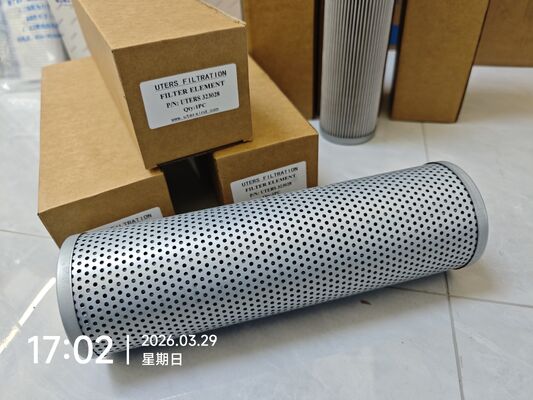

Original Part No.: 6060016680 (Special for Epiroc/Atlas Copco Drill Jumbos & Mining Drilling Rigs) Filter Type: Hydraulic Return Line Fine Filter Applicable Models: MT42, Boomer Series, Simba Series Tunnel Drill Jumbos, Open-pit DTH Drills, Underground Tunneling Drills Related Series Parts: 6060016681, 6060016682 (Similar dimensions & filtration accuracy, interchangeable mounting base)

Outer Diameter (OD): 118 mm Inner Diameter (ID): 70 mm Overall Height (H): 330 mm End Caps: Black rubber-plastic sealing end caps on both ends, built-in supporting inner screen with integrated lifting handle

Filter Media: Multi-layer composite glass fiber (Thickened glass fiber for mining service, high dirt holding capacity) Filtration Rating: Standard 20μm; optional 10μm (20μm as OEM standard) Filtration Efficiency: ≥99.5% at rated rating Allowable Operating Pressure Differential Initial Pressure Drop: ≤0.08 MPa Clogging Alarm Differential Pressure: 0.35 MPa (Replace filter immediately once reached) Pressure Resistance: Max working pressure 21 MPa Operating Oil Temperature Range: -30℃ ~ +120℃ Seal Material: Oil-resistant Nitrile Butadiene Rubber (NBR), resistant to hydraulic oil corrosion

Function: Trap metal wear debris, rock dust and sludge in hydraulic oil to protect main pumps, multi-way valves and drilling impactors Replacement Interval Normal mining conditions: 2000 ~ 3000 operating hours Heavy dust tunnel/quarry conditions: 1000 ~ 1500 operating hours, or replace immediately when differential pressure hits 0.35MPa Structural Advantages: Multi-layer folded glass fiber, outer perforated protective screen and built-in support frame to resist hydraulic impact and prevent deformation or damage

Domestic Equivalents: LH0118D020BN3HC, SFX-118×330 International Equivalents: P763210, HF6899
