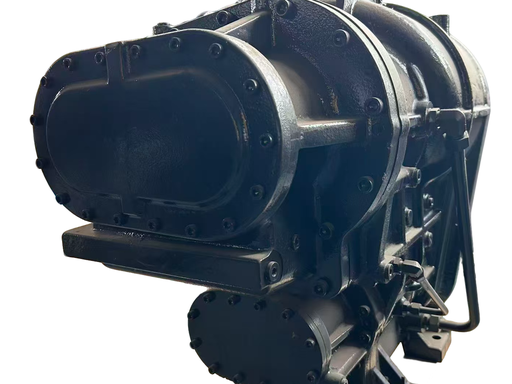

Epiroc DM45‑LP Compressor Air End Assembly57577033 (Epiroc) |OEM Part No.:2657577033 (Ingersoll‑Rand)

1
MOQ
350000
Price
Epiroc DM45‑LP Compressor Air End Assembly57577033 (Epiroc) |OEM Part No.:2657577033 (Ingersoll‑Rand)
Features Gallery Product Description Chat Now
Features
Specifications
Rated Working Pressure: 7.6 Bar (110 Psi)
Free Air Delivery (FAD): 900 Cfm / 25.5 M³/min @7.6 Bar
Operating Pressure Range: 5.5‑8.3 Bar; Safety Valve Set Point: 8.6 Bar
Item Specification Rated Working Pressure 7.6 Bar (110 Psi) Free Air Delivery (FAD) 900 Cfm / 25.5 M: Approx. 860 kg
Basic Infomation
Place of Origin: CHINA
Brand Name: Epiroc
Model Number: 57577033
Payment & Shipping Terms
Packaging Details: Original packaging
Delivery Time: 90 WDS
Payment Terms: D/A,D/P,T/T
Supply Ability: 9999
Product Description

Note: OEM official datasheet not publicly available. Data collected from drill rig service manual and component database. Final values refer to the nameplate on air end housingEpiroc.



Item Specification
Epiroc Part Number 57577033
Ingersoll‑Rand OEM Part Number 2657577033
Applicable Rig Epiroc DM45‑LP (Low‑Pressure) Blasthole Drill
Air End Type Oil‑injected Twin‑Screw Air End, GHH‑RAND OEM for mining mobile drill rig
Rotor Profile Tamrotor Enduro rotor profile
Drive Method Direct hydraulic motor drive, no external gearbox



Item Specification
Rated Working Pressure 7.6 bar (110 psi)
Free Air Delivery (FAD) 900 cfm / 25.5 m³/min @7.6 bar
Operating Pressure Range 5.5‑8.3 bar; Safety valve set point: 8.6 bar
Operating Speed Range 1100‑1800 rpm, hydraulically variable, controlled by EARS (Electronic Air Regulation System)
Shaft Power Absorption 210‑230 kW (hydraulic output from drill rig)
Lubrication Oil‑injected lubrication, special mining‑grade screw compressor coolant
Inlet / Outlet Connection DN200 flange for both air inlet and discharge
Net Weight (bare air end, excludes oil separator tank) Approx. 715 kg
Complete Compressor Assembly Weight (with separator & base frame) Approx. 1420 kg

Compatibility & Application Notes

  1. Only for DM45‑LP low‑pressure version. Cannot directly replace DM45‑HP high‑pressure air end (HP part number 2636017549). Rotor assembly, safety valve and piping are non‑interchangeable. Improper installation will cause severe air‑end damage.
  2. Controlled by rig EARS system for constant‑pressure variable‑air‑volume output.
  3. Part interchange: 57577033 (Epiroc) = 2657577033 (Ingersoll‑Rand OEM), fully interchangeable for original assembly.
