MTU Generator Unit: Maintenance Cycle and Original Factory Parts List

I. MTU Generator Sets/Engines – Full Range of Models (50–4000 kW)

1) Low-power (50–200 kW; predecessor to the 1600 series/miniature model)

• 4R0113/4R0120:DS50/60/80/100/125(50–125kW)

• 6R0113/6R0120:DS150/180/200(150–200kW)

2) Medium power (200–700 kW, 1600 series)

• 1600 Series (in-line 6/8-cylinder):

￮ 6R1600G20F:250kW

￮ 8R1600G40F:400kW

￮ 16V1600G80F:650–700kW

3) Medium to large main units (700–1300 kW, 2000 series)

• 2000 Series (V8/V10/V12/V16):

￮ 8V2000G25:750kW

￮ 12V2000G23/G65:900–1100kW

￮ 16V2000G65:1200–1300kW

4) High-power (1500–4000 kW, 4000 series, flagship model)

• 4000 series (V12/V16/V20):

￮ 12V4000G23/G63:1500–1800kW

￮ 16V4000G23/G63:2000–2500kW

[Image download failed]

II. MTU Standard Maintenance Cycle (W1–W6, Universal)

W1 Start daily/each time (required)

• Oil level, coolant level, diesel level

• Leakage (oil/water), belt, air filter, battery terminals

• Alarm code, smoke color, water temperature/oil pressure

W2: 50 hours (first maintenance for new unit)

• Oil + Engine Filter (0031845301)

• Clean the air filter and drain the fuel oil and water

• Tighten the external bolts and check the belt tension

W3: 250 hours (minor maintenance)

• Oil + Engine Filter (2 units, 0031845301)

• Fuel fine filter (0020922801)

• Air filter inspection, belt/tensioner, cooling system

W4: 1000 hours (medium maintenance)

• Including all W3 items

• Air filter (2 units, 0180941002)

• fuel coarse filter/water separator (X52407500020)

• Valve clearance, injector inspection, turbine inspection

W5: 2000 hours/12 months (major maintenance)

• Including all W4 items

• Coolant replacement, belt + tensioner

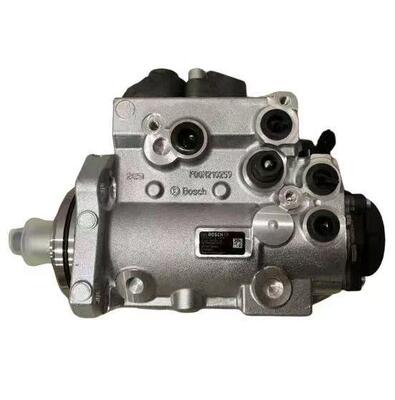

• Injector calibration, high-pressure oil pump inspection

• Generator bearing lubrication, ECU calibration

W6: 4000–8000 hours (major overhaul)

• Cylinder liner, piston, piston rings, large and small bearings, valves, oil seals

• Major overhaul of the turbocharger; inspection and maintenance of the fuel system assembly

III. Key Maintenance Points for Common MTU Malfunctions

• 難 to start: Low battery voltage, fuel misting into air, diesel filter clogging, poor injector atomization, ECU malfunction

• Black smoke/low power: Air filter clogged, injector failure, turbo failure, EGR stuck, insufficient cylinder pressure

• High water temperature: Water tank blockage, thermostat (0022035475) cannot be opened, belt slippage, insufficient coolant

• Low engine oil pressure: low oil level, clogged engine filter, worn oil pump, worn bearing bushings, sensor failure

• Electrical control alarm: Sensor failure (water temperature/oil pressure/rotational speed), wiring harness aging, ECU program anomaly
