Sand vik Toro™ LH410 10-ton Payload Underground LHD Loader with Fast Cycle Operation and Compact Body Design

1
MOQ
4280000
Price
Sand vik Toro™ LH410 10-ton Payload Underground LHD Loader with Fast Cycle Operation and Compact Body Design
Features Gallery Product Description Chat Now
Features
Specifications
Bucket Cycle Times: Lift 6.7 S / Lower 4.3 S / Dump 2.7 S
Bucket Capacity: 4.0–5.4 M³
Operating Weight: 28,500 Kg
Tilt Breakout Force: 19,340 Kg
Rated Payload: 10,000 Kg
Gross Loaded Weight: 38,500 Kg
Basic Infomation
Place of Origin: Sweden
Brand Name: Sand vik
Model Number: LH410
Document: lh410-specification-sheet-e...1).pdf
Payment & Shipping Terms
Packaging Details: Original packaging
Delivery Time: 45 WORKS
Payment Terms: Western Union,T/T,D/A,D/P,L/C
Supply Ability: 9999
Product Description

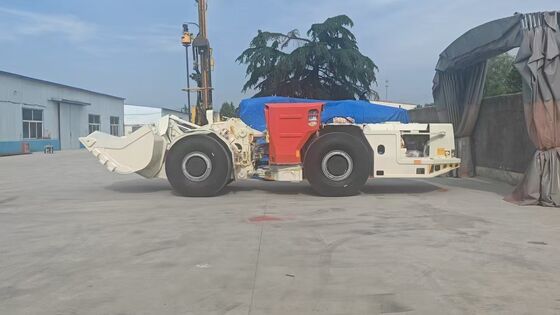

Sand vik Toro™ LH410 Underground LHD Loader
Product Overview
A 10-ton standard underground loader with a rated payload of 10 tons, serving as core medium-sized mining equipment. Suitable for mucking operations in metal mines, non-metal mines and tunnel excavation. Matched with Sand vik TH430 underground truck, three bucket loads fill one truck to form a complete integrated loading and haulage system.
Technical Specifications
Loading & Bucket
  • Rated payload: 10,000 kg (10 t)
  • Operating machine weight: 28,500 kg; Gross loaded weight: 38,500 kg
  • Standard bucket capacity: 4.0 m³; Optional enlarged capacity: 4.0-5.4 m³ (side-dump / dozer buckets available)
  • Lift breakout force: 20,390 kg; Tilt breakout force: 19,340 kg
  • Bucket cycle times: Lift 6.7 s / Lower 4.3 s / Dump 2.7 s for fast cycle operation
Overall Dimensions
10,100 × 2,700 × 2,400 mm. Compact body design for medium cross-section mine drifts.
Travel Speeds (Flat ground, fully loaded, VOL VO Stage V engine version)
1st Gear 2nd Gear 3rd Gear 4th Gear
5.5 km/h 10.2 km/h 17.5 km/h 31.7 km/h
Equipped with lock-up torque converter and limited-slip differential axles to deliver powerful traction and outstanding climbing speed among peer models.
Powertrain (VOL VO TAD11140VE Stage V / China National Stage V Emission Standard)
  • Passive DPF particulate filter regeneration enables automatic ash cleaning during normal operation, drastically cutting maintenance downtime
  • Adjustable engine braking for downhill speed control, reducing wear on brake pads and transmission
  • Low NOx emissions to meet environmental ventilation requirements for confined underground spaces; Tier II low-emission engine version is also available as an alternative
Key Advantages
High Productivity
Optimized boom geometry and superior breakout force ensure fast bucket filling. Higher dumping clearance than equivalent loaders enables smooth truck loading, boosting tonnage output per shift via shorter haul cycles.
Full Digital Intelligent System
Fitted with Sand vik intelligent machine control system for real-time condition monitoring, fuel consumption tracking and fault pre-warning. Optional IWS on-board weighing system automatically records daily ore tonnage. Compatible with AutoMine® fully autonomous mining system.
Safety & Heavy-Duty Durability
Two cab options: ROPS/FOPS certified operator cab or basic protective canopy. Spring-applied, hydraulic-released service brakes for reliable parking safety. Reinforced heavy-duty axles and wear-resistant hydraulic tubing.
Low Operation & Maintenance Costs
Passive engine regeneration minimizes shutdown time. Modular hydraulic and transmission components feature high part interchangeability. My Sand vik online portal provides instant access to spare parts catalogues and maintenance schedules.
Application Scenarios
  • Stoping and development mucking in medium & small metal mines (copper, lead-zinc, gold, nickel mines)
  • Ore haulage in non-metal mines, salt mines and gypsum mines
  • Short-distance muck transport inside urban tunnels and hydraulic tunnels
  • Primary haulage equipment for automated unmanned mining operations
Matching Equipment
Perfectly paired unit: Sand vik TH430 10-ton underground haul truck; three bucket loads fully fill one truck for integrated loading and haulage solutions.
