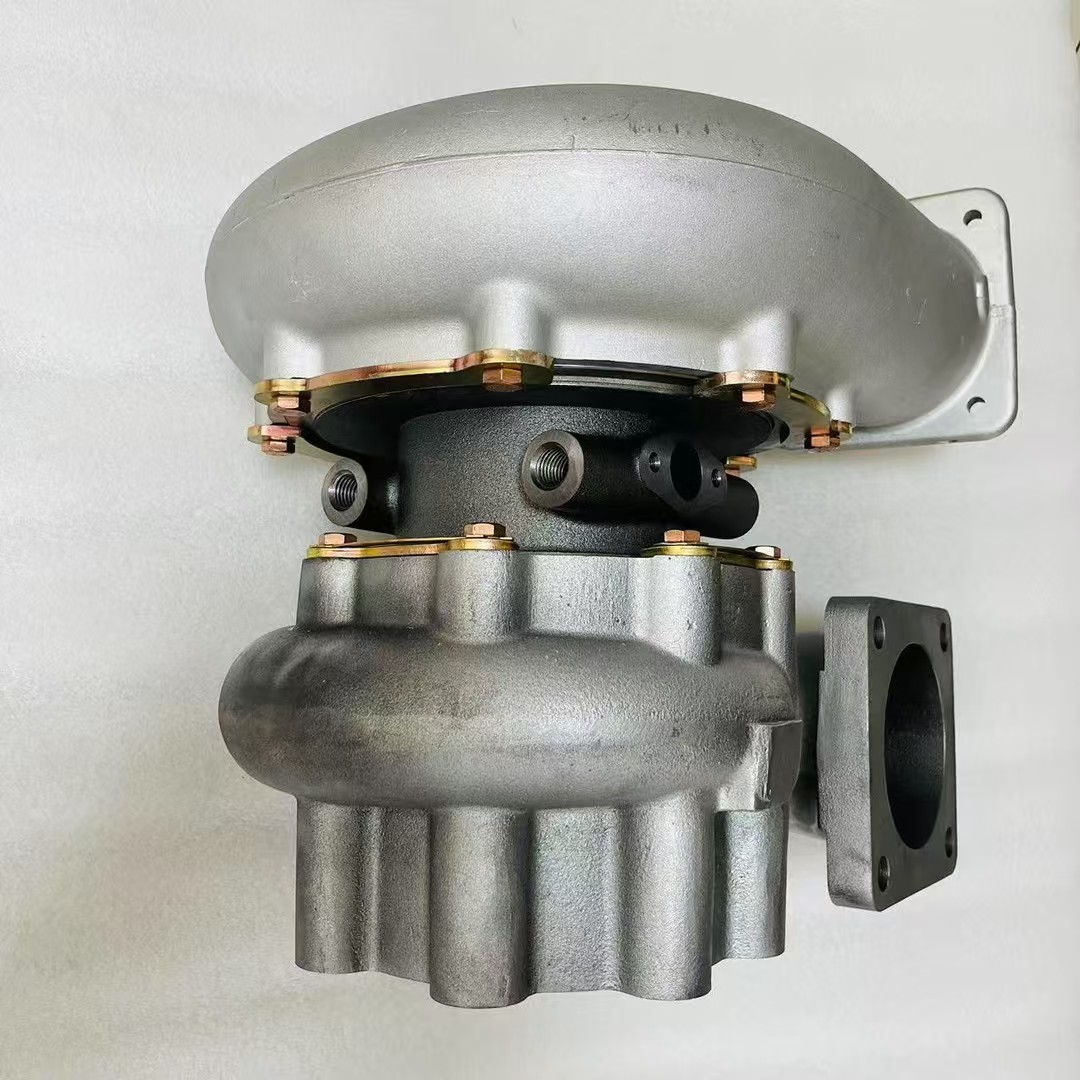

Cat 3512 Turbocharger 0R-7163/102-0299

64569
Price
Cat 3512 Turbocharger 0R-7163/102-0299
Features Gallery Product Description Chat Now
Features
Specifications
Outer Package Dimension: 480×350×590 Mm
Net Weight Of Complete Turbocharger: 20 Kg
Gross Weight (with Package): 28 Kg
Compressor Housing: 363 Mm
Turbine Housing Height: 406 Mm
Impeller Model: TV9211 High-Flow Turbine Impeller
Basic Infomation
Place of Origin: USA
Brand Name: Cat
Model Number: 0R-7163/102-0299
Payment & Shipping Terms
Packaging Details: Original packaging
Delivery Time: 15days
Payment Terms: T/T
Supply Ability: 9999
Product Description
  • OEM Part No.: 102-0299 (New Turbo GP)

    Reman Part No.: 0R-7163 (Cat Reman Turbo, fully interchangeable)
  • Turbo Model: TV9211
  • Compatible Engine: CAT 3512, 3512B, 3516, 3516B
  • Application: Generator Set, Marine Engine, Oilfield Drilling Power, Mining Equipment
  • Dimension: 480×350×590 mm
  • Net Weight: 20 KG, Gross Weight: 28 KG
  • Max Working Temp: Continuous 620℃, Peak 700℃
  • Max Rotate Speed: 68000 RPM
  • Max Boost Pressure: 1.5 Bar
  • Lubrication: Engine Oil Forced Lubrication & Cooling
  • Material:
    • Turbine Housing: High Nickel Heat-resistant Cast Iron
    • Compressor Housing: Cast Aluminum Alloy
    • Bearing Housing: Ductile Iron with New Thrust & Floating Bearings
  • Warranty: 12 months unlimited running hours
  • Matching Accessories: 7E-8516 Turbo Clamp, 0R-7165 Seal Kit, 100-4095 Oil Seal Kit
