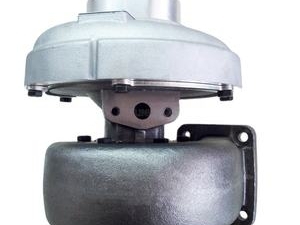

Turbocharger Assembly 53279880001 (Genuine DEUTZ/MWM Part)

1. Basic Information

• Part Number: 53279880001 (Genuine BorgWarner part number)
• Model: K27 (K27.2 platform)
• Brand: DEUTZ / MWM / BorgWarner (3K)
• Applicable Models:


  DEUTZ MWM TBG 616/620 gas engines


  DEUTZ MWM TCG 2016/2020/2032 series (V12/V16/V20)


  MWM TBD616V8 marine and industrial engines


  Units running on natural gas, biogas, landfill gas, coal bed gas and industrial diesel engines
• Function: Driven by exhaust gas, the turbine drives the compressor to charge intake air. It improves volumetric efficiency, increases power output by 30%–50%, optimizes combustion and cuts fuel consumption and exhaust emissions.
• Matching Parts: Core component of engine intake and exhaust system, matched with intercooler, intake manifold and exhaust manifold.

2. Structure & Materials

Turbine Side (Hot End)

• Turbine Wheel: Nickel-based superalloy, resistant to high temperature over 850℃ and creep deformation.
• Turbine Housing: Ductile iron, high temperature resistance and thermal shock resistance.

Compressor Side (Cold End)

• Compressor Wheel: High-strength cast aluminum, lightweight and designed for high rotating speed.
• Compressor Housing: Aluminum alloy with excellent heat dissipation and light weight.

Central Housing & Bearing System

• Bearing: Full floating bearing design, vibration-resistant and long service life.
• Lubrication: Pressure lubrication via engine oil with dedicated cooling oil passages.
• Sealing: Combined metal and rubber seal to prevent oil leakage and air leakage.

Wastegate

• Built-in pneumatic wastegate actuator to regulate boost pressure and avoid over-speed and over-pressure.

Operating Temperature

• Continuous temperature at turbine side: ≤850℃
• Continuous temperature at compressor side: ≤180℃
• Unit Weight: Approx. 12.5 kg

3. Main Technical Parameters (Original Standard)

• Boost Pressure: 0.6–0.8 bar (adjustable)
• Maximum Rotating Speed: 120,000 rpm
• Intake Air Flow: 0.25–0.5 kg/s
• Compression Ratio: 2.2–2.5:1

Connection Dimensions

• Turbine Inlet: φ80 mm (flange connection)
• Turbine Outlet: φ70 mm
• Compressor Inlet: φ75 mm
• Compressor Outlet: φ60 mm

Lubrication Ports

• Oil Inlet: M14×1.5
• Oil Return: φ20 mm (flange connection)

4. Functions & Features

• High Efficiency Supercharging: Adopts classic K27 platform with compressor efficiency ≥75%. It delivers high torque at low speed and suits lean-burn operation of gas engines.
• Durability & Reliability: Equipped with high-temperature resistant turbine and full floating bearings. It withstands exhaust temperature up to 850℃ with an industrial service life of over 20,000 hours.
• Vibration & Contamination Resistance: Reinforced housing and premium sealing structure adapt to severe vibration and gas media containing sulfur and dust.
• Precision Pressure Control: Integrated wastegate stabilizes boost pressure to prevent engine knocking and over-speed, fully protecting the engine.
• Multi-fuel Adaptability: Compatible with natural gas, biogas, coal bed gas and diesel fuel, featuring good resistance to carbon deposition and coking.

5. Replacement & Compatibility

• Genuine Alternative Part No.: 53279880001 (No updated replacement part)
• Equivalent BorgWarner Models:


  53279886001 (Exclusive for MWM)


  53279707041 (For TBD616V8 marine engines)


  53279887120 (For construction machinery)
• Recommended Products: Only genuine or remanufactured BorgWarner products are acceptable. Ordinary aftermarket products are prohibited to avoid the risk of high-speed failure.

6. Installation & Maintenance Instructions

Pre-installation Inspection

• Check the housing for cracks, turbine and compressor wheels for deformation and scratches. Ensure the bearing rotates smoothly without sticking.
• Keep sealing surfaces intact and clean, and make sure all gaskets are complete.

Mounting Torque

• Turbine inlet flange: 25±3 Nm
• Compressor outlet: 20±2 Nm
• Oil inlet port: 15±2 Nm

Lubrication Requirements

• Pre-fill 50 ml engine oil before installation and rotate the wheel manually to lubricate bearings.
• Run the engine at idle speed for 3–5 minutes after start-up; avoid rapid acceleration.

• Replacement Cycle

  Replace every 20,000 operating hours or 36 months, whichever comes first. Regularly inspect intake/exhaust leakage, oil consumption and boost pressure.
